Frame relay multipoint lab

Frame Relay Multipoint Lab

Goals of this lab

• To create a network using Multipoint Frame Relay
• Achieve Frame Relay using the Adtran Atlas 550
• Configure OSPF for multipoint routing

Phase One

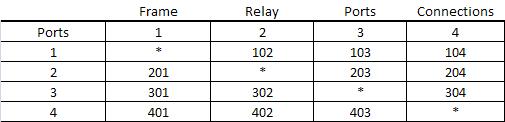

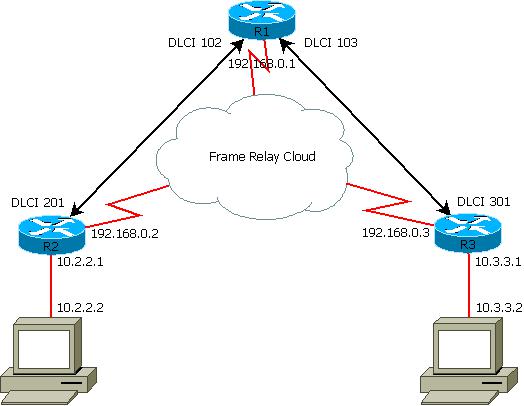

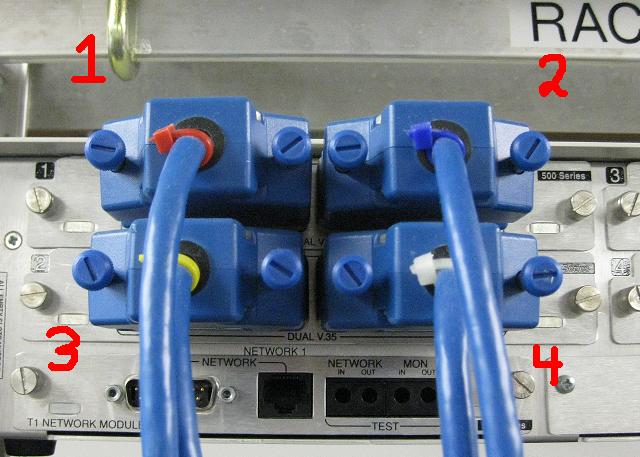

Connect the network according to the diagram. You will need to pay attention to which ports you use on the Adtran as this is be your DLCI numbers. For this lab we will be using Port 1 of the Adtran for R1, Port 2 for R2, and Port 3 for R3. Below is how you determine what is going on with the Adtran.

Phase Two

You will want to do the basics on Routers like:

• Hostname
• Address your Fast Ethernet ports so they can recieve some mail.
• No ip domain-lookup
• Some Banner action
• Password the crap out of your router so demons dont get you while you sleep at night!

Phase Three

This phase will be all about how to setup your frame relay on your routers. We will be starting on R1 so please be there. You will start off by going into global config mode.

• interface s0/0/0
• encapsulation frame-relay
• interface s0/0/0.1 multipoint
• ip address 192.168.0.1 255.255.255.0
• frame-relay interface-dlci 103
• exit (out of the dlci command interface thingy)
• frame-relay interface-dlci 102
• exit
• ip ospf network point-to-multipoint (So OSPF will work in this enviroment)

Now on R2 in global configuration mode

• interface serial0/0/0
• encapsulation frame-relay
• interface s0/0/0.1 point-to-point
• ip address 192.168.0.2 255.255.255.0
• frame-relay interface-dlci 201
• ip ospf network point-to-multipoint

Now on R3 in global configuration mode

• interface serial0/0/0
• encapsulation frame-relay
• interface s0/0/0.1 point-to-point
• ip address 192.168.0.3 255.255.255.0
• frame-relay interface-dlci 301
• ip ospf network point-to-multipoint

Your network should be able to ping each other at this point in time.
