How to configure SDM to secure a router

Segment ONE:

Connect to R2 using TFTP Server.

Create a username and password on R2:

R2(config)#username ccna password ciscoccna

Enable the http secure server on R2 and connect to R2 using a web browser on TFTP Server:

R2(config)#ip http secure-server

R2(config)#

Nov 16 16:01:07.763: %SSH-5-ENABLED: SSH 1.99 has been enabled
Nov 16 16:01:08.731: %PKI-4-NOAUTOSAVE: Configuration was modified. Issue "write memory" to save new certificate''

R2(config)#end

R2#copy run start

From TFTP Server, open a web browser and navigate to https://192.168.20.1/

Login with the previously configured username and password:

username: ccna

password: ciscoccna

Select Cisco Router and Security Device Manager

Open Internet Explorer and enter the IP address for R2 in the address bar

Make sure that you have all popup blockers turned off in your browser.
Also make sure that JAVA is installed and updated.

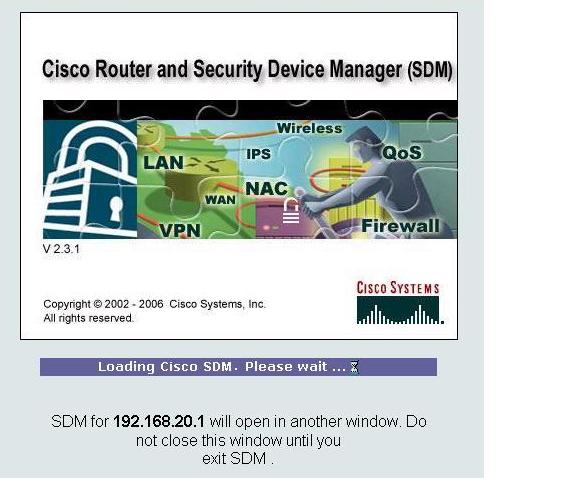

This window opens.

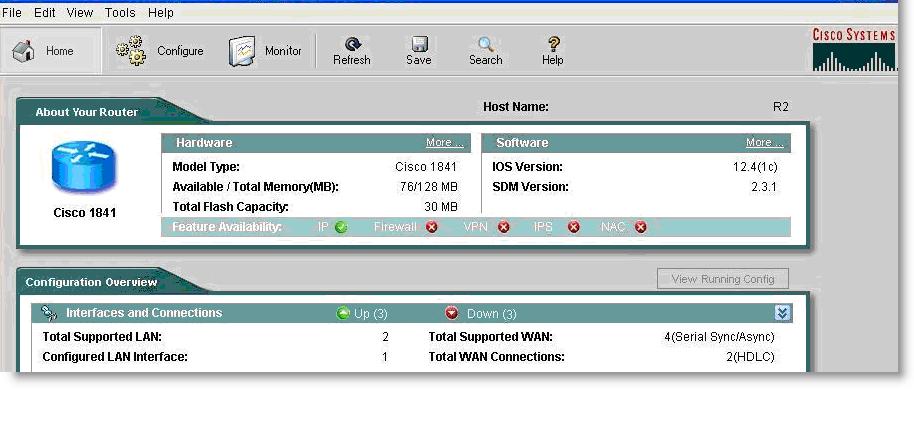

After it is done loading, a new window opens for SDM like this one:

Segment TWO:

Navigate to the Security Audit feature.

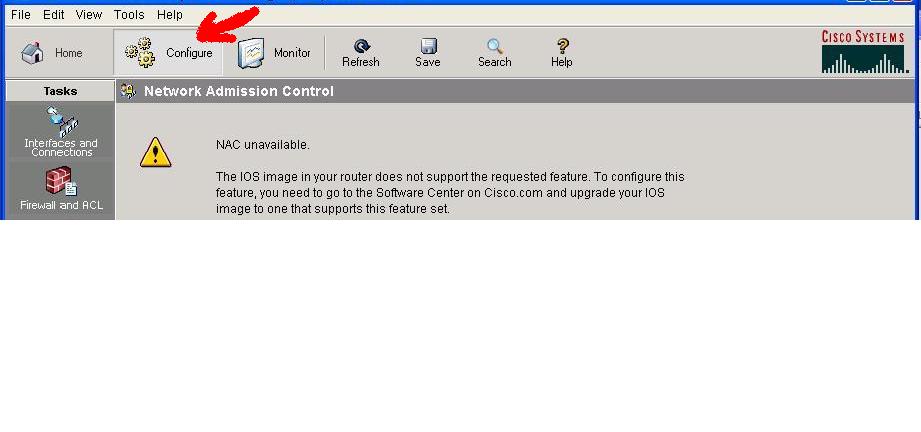

Click the . Configure . button in the top left side of the window

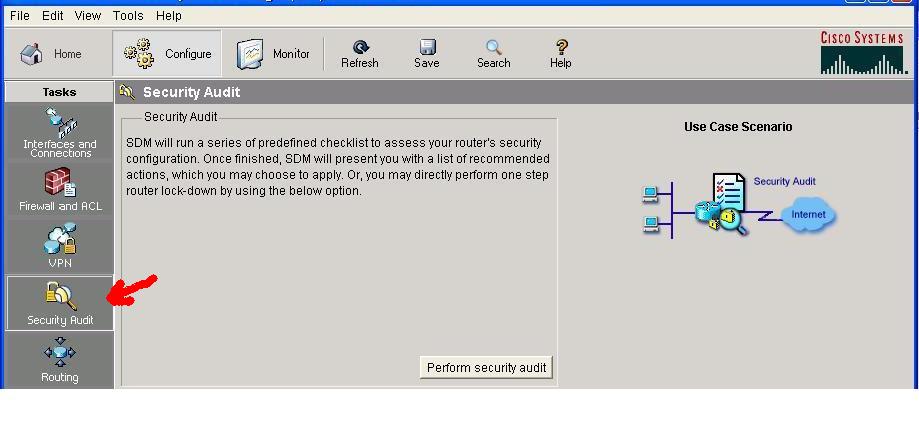

Now navigate down the left panel to Security Audit and click on it.

Segment THREE:

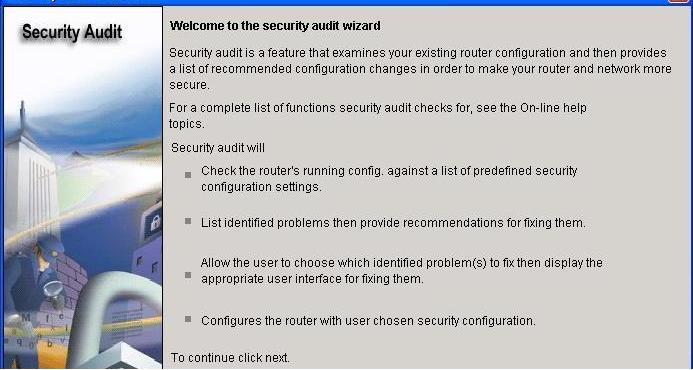

When you click on Security Audit, the next window will gives you a brief explanation of what the Security Audit feature does.

Click on

Next

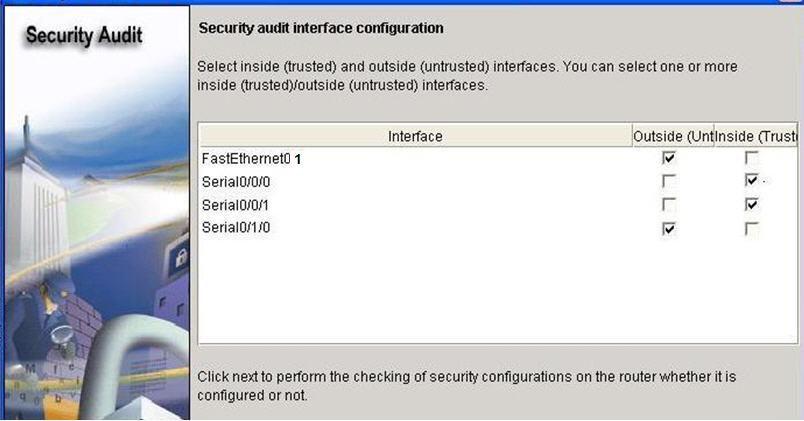

to open the Security Audit Interface configuration window.

An interface should be classified as outside (untrusted).

After selecting outside and inside interfaces, click

Next

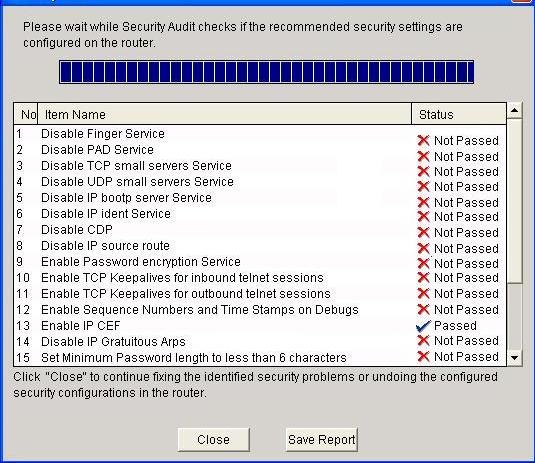

A new window opens indicating that SDM is conducting a security audit check:

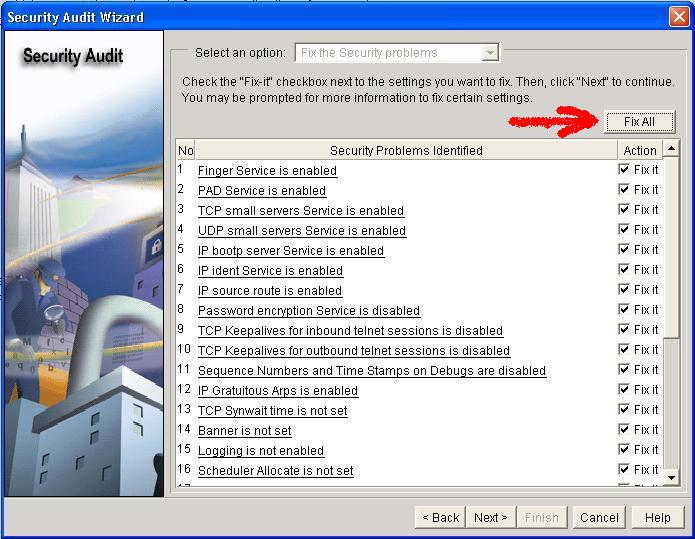

Now we can discover that the default configuration is not secure.

Click

Close

to continue.

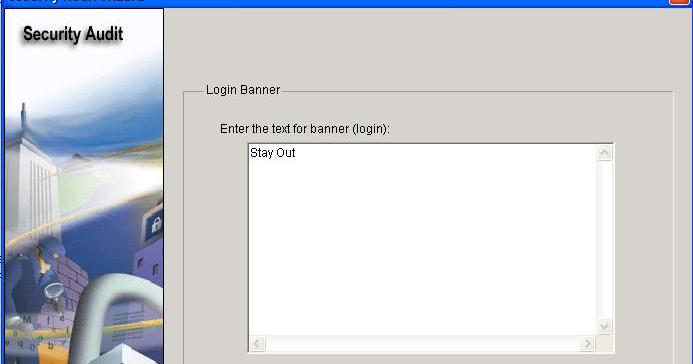

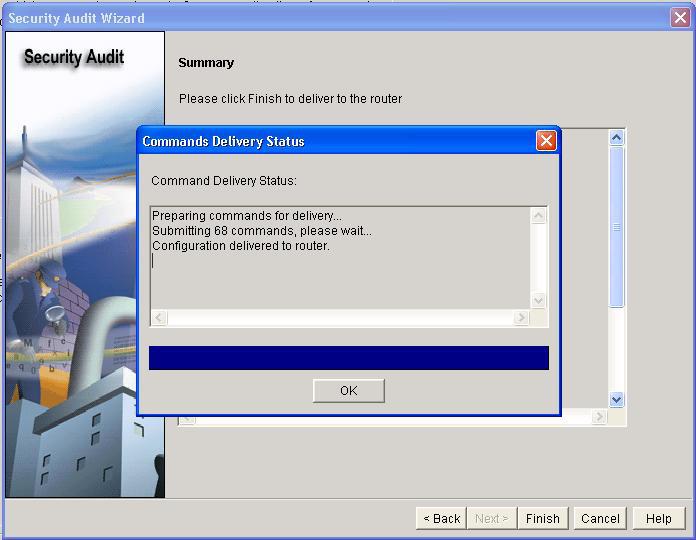

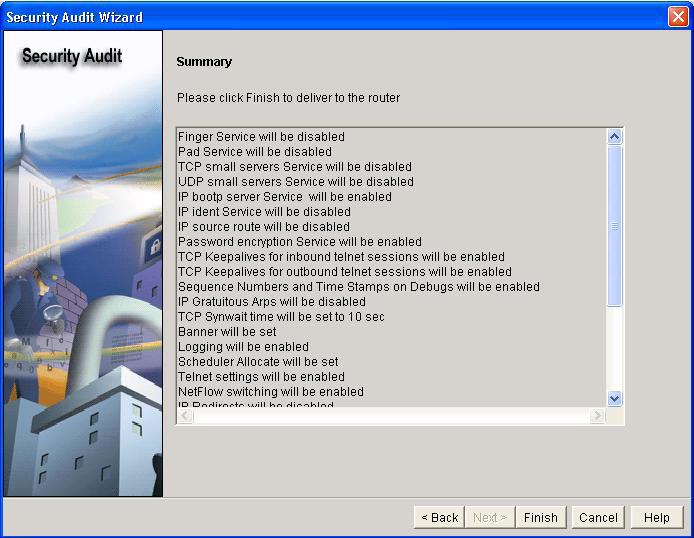

Segment 4: Applying settings to the router.
